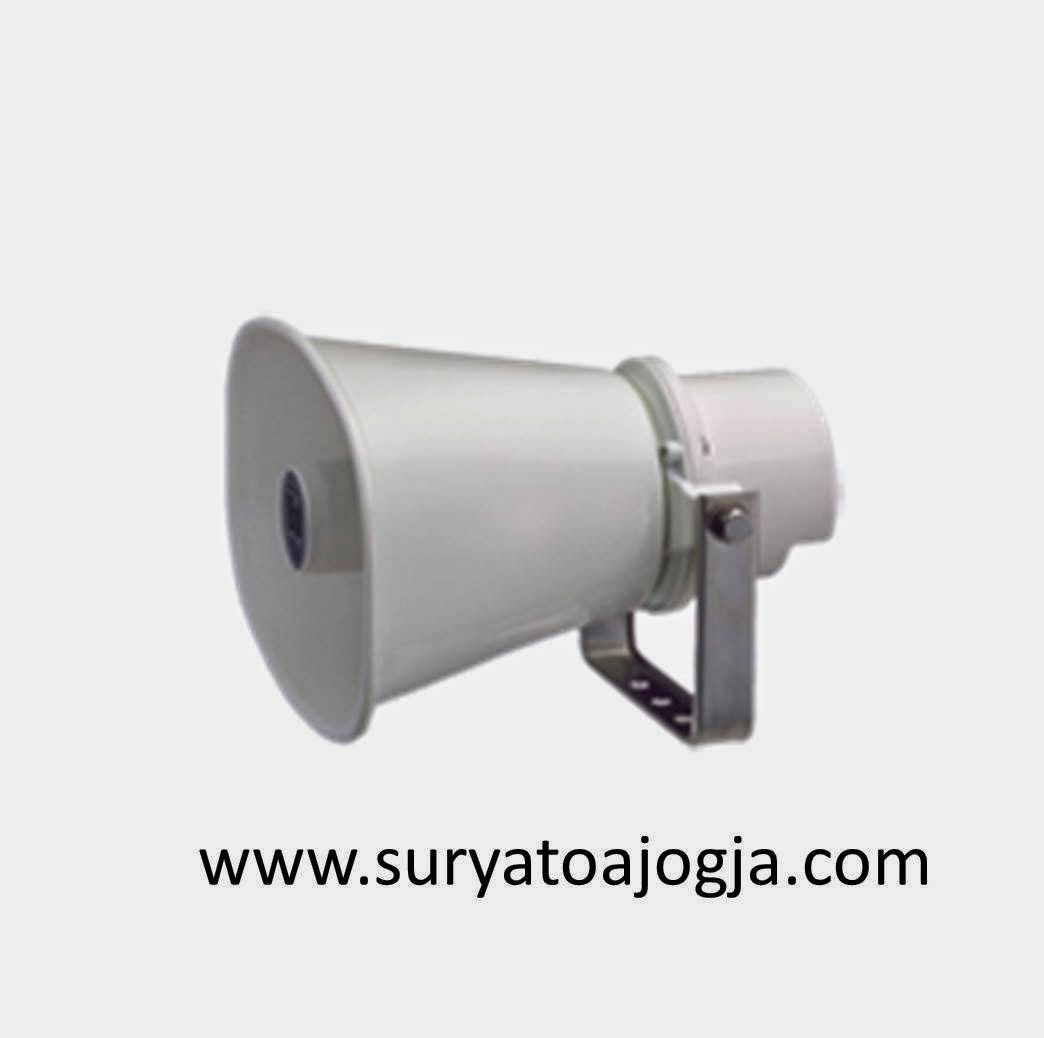

PAGING HORN SPEAKER 10 W + MATCHING TRAFO
The ZH-610SM is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.
| Specifications | |
|---|---|
| Rated Input | 10 W |
| Line Voltage | 100 V line or 70 V line |
| Rated Impedance | 100 V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) |
| 70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), | |
| 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) | |
| Sound Pressure Level | 110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response | 315 Hz – 12.5 kHz |
| Sensitivity when used as Microphone (0 dB=1 mW/10 dynes/c㎡) | -24 dB at 1 kHz |
| Dust/Water Protection | IP65 |
| Polarity | Hot: Black, Com: White |
| Operating Temperature | -20 ℃ to +55 ℃ (must be free from dew condensation) |
| Finish | Horn flare: Aluminum, off-white, powder coating |
| Reflector horn and rear cover: ABS resin, off-white | |
| Bracket, screws and bolts: Stainless steel | |
| Speaker cable: Polyvinyl chloride insulated cabtyre cable | |
| (6 mm in diameter, 600 mm in length) | |
| Dimensions | 172 (W) × 161 (H) × 188 (D) mm |
| Weight | 1.2 kg |
| Option | Swivel bracket: YS-151S (Can be used instead of the supplied bracket.) |
