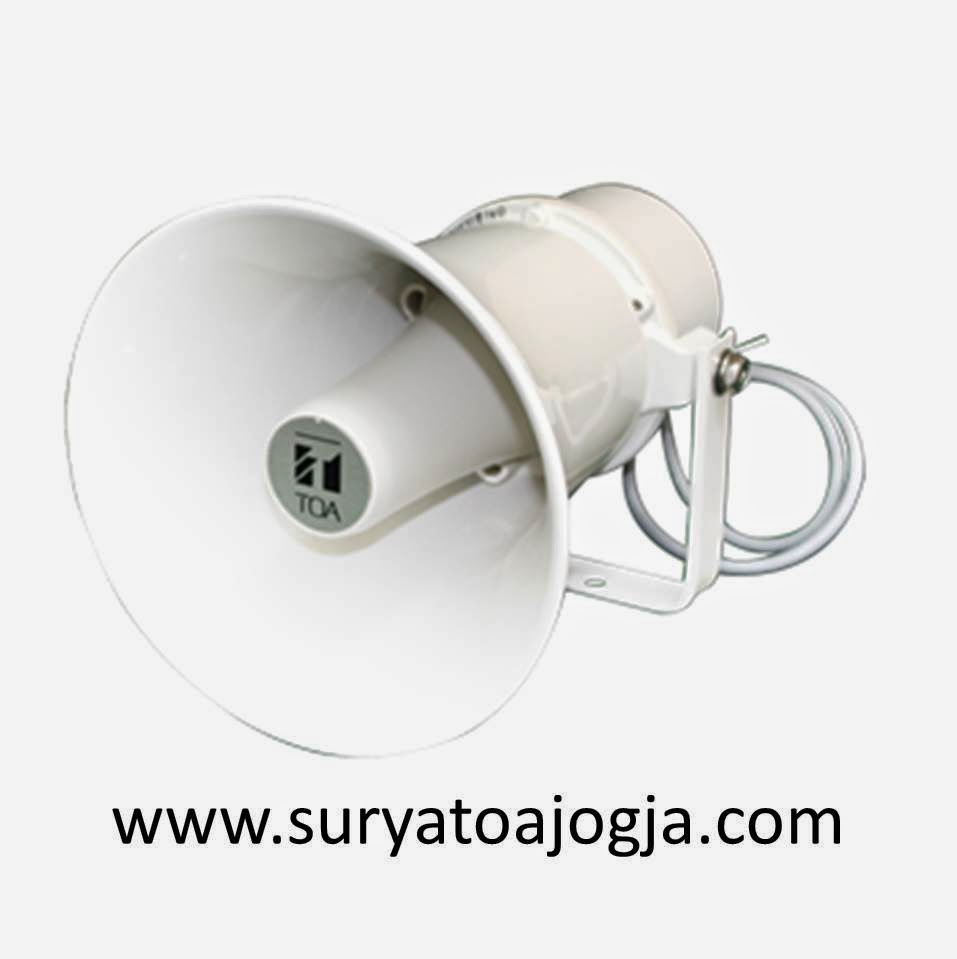

HORN SPEAKER 15 W + MATCHING TRAFO
| Specifications | |
|---|---|
| Rated Input Selection / | 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W) |
| Impedance | |
| Sound Pressure Level | 110dB (1W, 1m at 500Hz to 2.5kHz peak level) |
| Frequency Response | 280Hz – 12.5kHz |
| Polarity | Hot : Black |
| Com : White | |
| Operating Temperature | -20o to +55o C |
| (must be free from dew condensation) | |
| Finish | Horn flare: Alumunium, Off white |
| Reflector horn and rear cover: ABS resin, off-white bracket | |
| Screws and bolts: steel | |
| Speaker cable : Polyvinyl chloride insulated cabtyre cable ( 6mm in diameter, 400 mm in length ) | |
| Dimensions | Diameter 196 (W) x 240 (D)mm |
| Weight | 1.1 kg |
